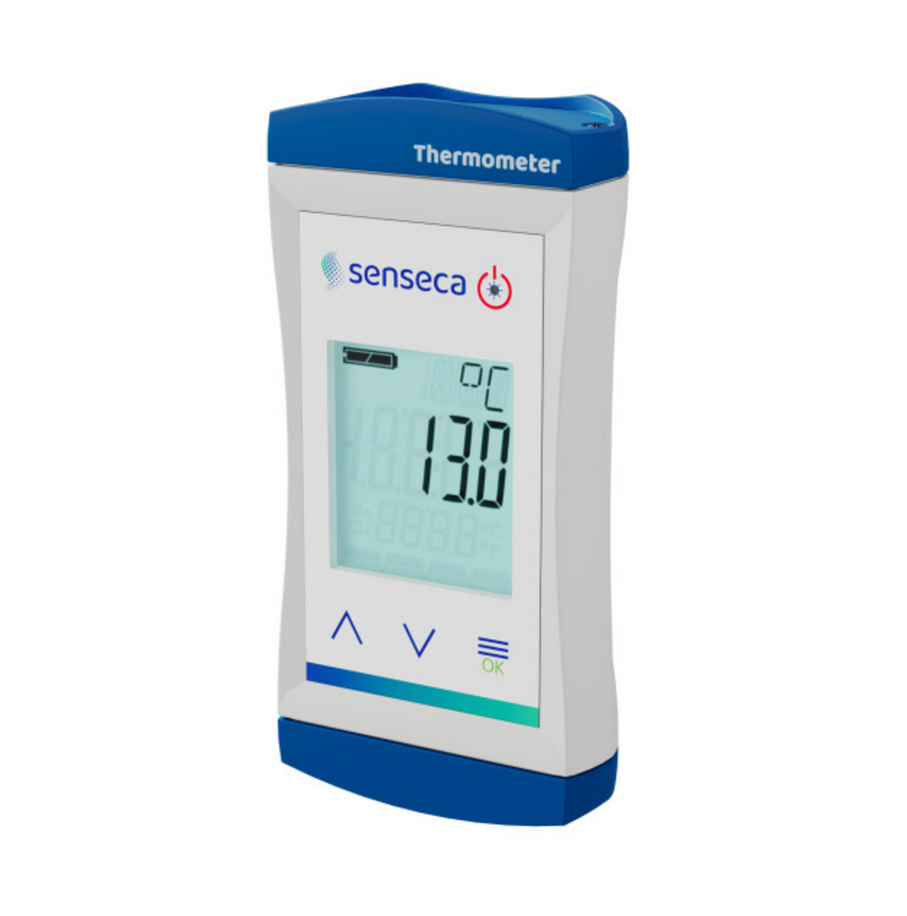

ECO 130 - Precision quick-response thermometer for NiCr-Ni (type K)

Precision rapid response thermometer for NiCr-Ni (type K).
Thanks to the backlight, the three-line LCD display offers ergonomic wide-angle visibility - by day and by night.
The HOLD function enables the display values to be frozen.
Resolution 0.1 ° C or 1 ° C.

VISA/MASTERCARD, PAYPAL,
ANTICIPATED REMITTANCE OR DIRECT
PAYMENT WITH DELIVERY AT OUR
WHAREHOUSE.

CUSTOMER SERVICE: +39.02.6659.5982

SKU	Model	Description	Price	Quantity
48250	ECO 130	Precision quick-response thermometer for NiCr-Ni (type K) Accessories and probes not included	90 EUR	Quantity
47	GTF 400	Type K - Measuring Probe NiCr-Ni Range: -65…+550°C Probe length: 130 mm Diameter probe: 1.5 mm Connection: Miniature flat plug Cable: 1 mt silicone cable	40 EUR	Quantity
32236	GTF 900	Type K - Measuring Probe NiCr-Ni Range: -65…+1000°C Probe length: 130 mm Diameter probe: 3 mm Connection: Miniature flat plug Cable: 1 mt silicone cable	43.5 EUR	Quantity
32239	GTF 1000 AL	Type K - Robust Measuring Probe NiCr-Ni Range: -200…+1000°C Probe length: 1000 mm Diameter probe: 6 mm Connection: Miniature flat plug Cable: 1 mt silicone cable	142 EUR	Quantity
32237	GTF 1200	Type K - Bendable Measuring Probe NiCr-Ni Range: -200…+1150°C Probe length: 150 mm Diameter probe: 1.5 mm Connection: Miniature flat plug Cable: 1 mt silicone cable	63 EUR	Quantity
32238	GTF 1200/1300	Type K - Bendable Measuring Probe NiCr-Ni Range: -200…+1150°C Probe length: 300 mm Diameter probe: 3 mm Connection: Miniature flat plug Cable: 1 mt silicone cable	70.5 EUR	Quantity
32240	GOF 130	Type K - Very fast Measuring Probe NiCr-Ni 2 laser welded NiCr-Ni resilient springs Range: -65…+900°C Probe length: 130 mm Diameter probe: 8 mm Connection: Miniature flat plug Cable: 1 mt silicone cable	72 EUR	Quantity
32241	GOF 900 HO	Type K - Measuring Probe NiCr-Ni 2 laser welded NiCr-Ni resilient springs Range: -65…+900°C Probe length: 130 mm Diameter probe: 8 mm Connection: Miniature flat plug Cable: 1 mt silicone cable	75 EUR	Quantity
32242	GES 20K	Type K - Very thin Measuring Probe NiCr-Ni Range: -65…+550°C Probe length: 100 mm Diameter probe: 1.5 mm Connection: Miniature flat plug Cable: 1 mt Teflon cable Small Teflon handle	58.5 EUR	Quantity
32243	GES 21K	Type K - Measuring Probe NiCr-Ni Range: -50…+250°C Probe length: 100 mm Diameter probe: 3 mm Connection: Miniature flat plug Cable: 1 mt Teflon cable Big white Teflon handle	58.5 EUR	Quantity

Description

Protection class:
IP40
Accuracy:
Instrument ±0.1 % v.MW. ±1 °C
Reference junction ±0.3 °C
Measurement rate:
3 measurements per second
Power supply:
2 x AA Alkaline batteries (included)
Power consumption:
<1 mA
Weight:
approx. 125 g
Housing material:
break proof ABS, screw locked bat. compartment
Measuring range:
Temperature -65.0 ... 1200.0 °C / -85.0 … 2192 °F
Connections:
Socket for miniature flat-pin plug
Operating conditions:
-20 ... +50 °C; 0 ... 85 % r.h. (non-condensing)
Storage temperature:
-25 … 65 °C (without batteries)
Display:
3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at keypress
Dimensions:
108 x 54 x 28 mm (H x W x D)
Additional functions:
Zero and slope adjustment
Standard functions:
Min/Max/Hold,
Auto-Power-Off-function
Automatic Power-Off:
configurable by the user
Battery life:
> 3000 h typ. Continuous operation
Operating conditions instrument:
-20 ... +50 °C; 0 ... 85 % r.h. (non-condensing)
Max cable length:
3 m

Documentation

ENG - Datasheet182.19 KB

ENG - Manual435.19 KB

Accessories

	SKU	Model	Description	Price		Quantity
	18174	Temperature Certificate Ref. ACCREDIA	3-point verification, with the reference of the calibration of the sample used, in addition to the details of the instrument and the outcome of the checks. Referred to ACCREDIA certified master	€40.00		Quantity
