The primary focus in the development of the new SENSECA ECO series was place on the essential functions of the measurement technology. Pure measurement with a focus on precision, speed and reliability packaged in a compact housing distinguish an impressive price/performance ratio, Made in Germany.
The new handheld measuring devices also impress with their ergonomic design, dust and water-protected design in accordance with IP 65/67 and the illuminated display. The compact thermometer is available with a practical BNC connection for interchangeable sensors or as a complete device including sensor with maximum overall precision.
The device redefines our entry-level measurement class - calibration log included.
The matching sensors can be used at temperatures of up to 250 °C (incl. handle and cable) and are distinguished by their compact design and small tube diameter.

Measurement range: -200,0 ... +450.0 °C (-328,0 ... +842.0 °F) with plug-in sensor
(Observe the permissible range of application of the sensor that is used!)

Accuracy: (at nominal temperature = 25 °C)

G 1700 (device only): -20 ... +100 °C: ±0.1 K ±1 digit

otherwise 0.1 % of m. v. ±2 digits

Operating conditions: -20 ... +50 °C; 0 ... 95 % r.h. (non-condensing)

Display / backlighting: 3-line unit, with background light, protected by an unbreakable pane, overhead display at the push of a button

Power supply: 2 x AA battery, >5000 h operating time

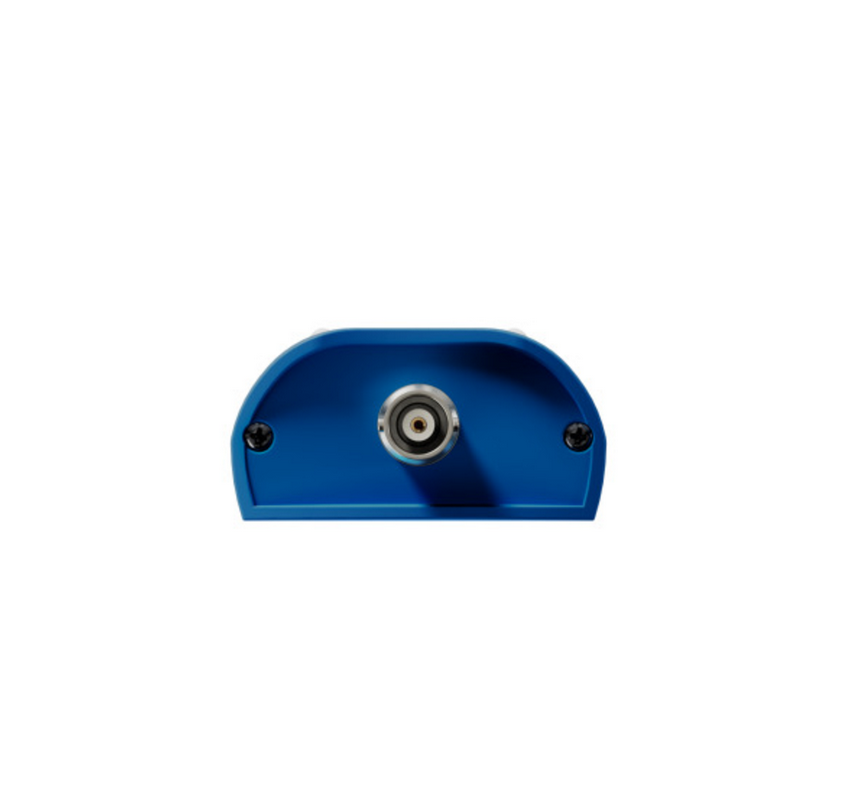

ECO 120: Pt1000 2-wire can be used with BNC connection

Response time: Ø 3 mm: Water 0.4 m/s <2 s;

                             Ø 1.5 mm: Water 0.4 m/s <1 s

Protection rating: IP65 / IP67 (only with sensors identifi ed as waterproof in the
connected state for devices with BNC connection)

Housing: Break-proof ABS housing

Dimensions: 108 x 54 x 28 mm (H x W x T) without sensor connection

Weight: 130 g (without sensor)

Scope of supply: Device with integrated sensor (except for G 1700), calibrati-

on log, 2 x battery, operating manual
